Forest Cover Type Classification with XGBoost

This notebook builds a multi-class XGBoost model for the Forest Cover Type dataset.

The workflow:

1. Load and inspect the data

2. Clean column names

3. Prepare features and target

4. Split into train, validation, and test sets

5. Build preprocessing and XGBoost pipelines

6. Train a baseline model

7. Tune XGBoost with randomized search

8. Compare baseline vs tuned validation performance

9. Retrain the best model on train + validation

10. Evaluate once on the untouched test set

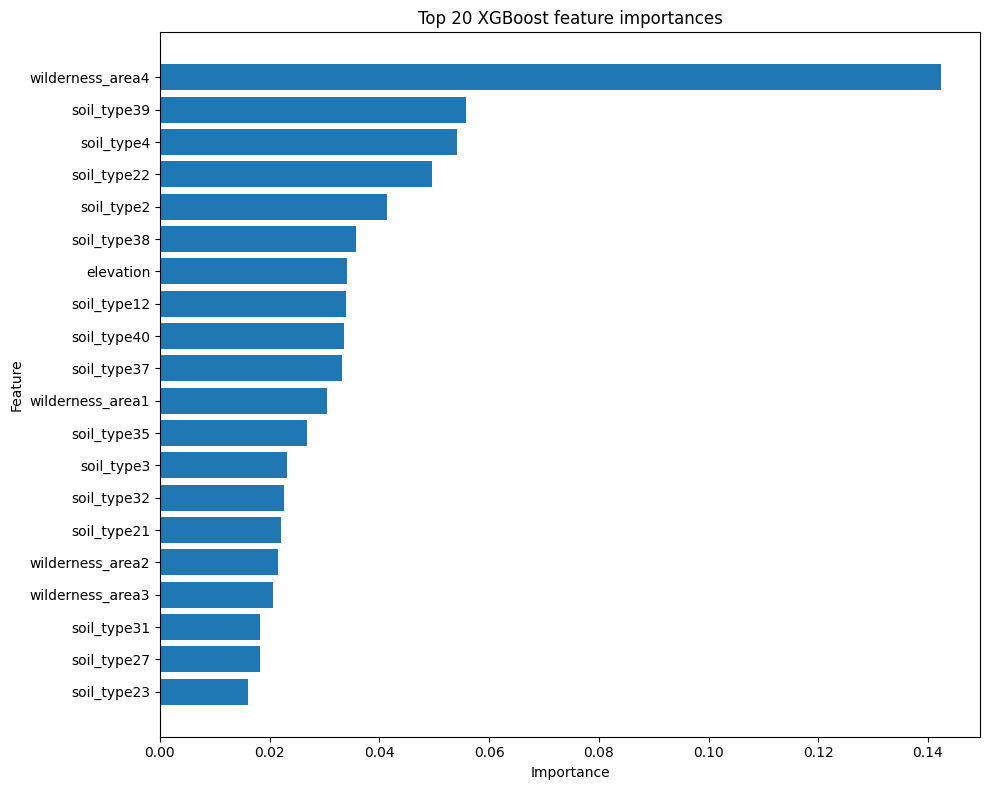

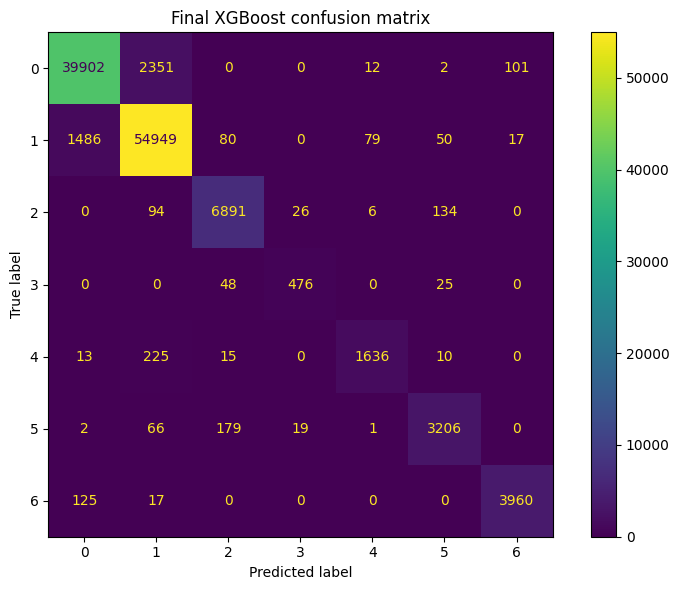

11. Show confusion matrix and feature importance

12. Save only the final trained pipeline with joblib

import warnings
warnings.filterwarnings("ignore")

from pathlib import Path

import joblib
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

from sklearn.compose import ColumnTransformer
from sklearn.metrics import (
    accuracy_score,
    classification_report,
    confusion_matrix,
    ConfusionMatrixDisplay,
    f1_score,
    precision_score,
    recall_score,
)
from sklearn.model_selection import RandomizedSearchCV, train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler

from xgboost import XGBClassifier

1. Project settings

SETUP = {
    "data_path": "../data/forestcover.csv",
    "target": "cover_type",
    "seed": 42,
    "test_size": 0.20,
    "validation_size_from_train_val": 0.25,
    "num_classes": 7,
    "model_dir": "../models",
    "model_name": "forest_cover_xgb_pipeline.pkl",
}

# n_jobs = -1 is faster since it utilizes 100% of CPU, IF you have strong machine
XGB_BASE = {
    "objective": "multi:softprob",
    "num_class": SETUP["num_classes"],
    "eval_metric": "mlogloss",
    "tree_method": "hist",
    "random_state": SETUP["seed"],
    "n_jobs": 1,
}

SEARCH = {
    "n_iter": 20,
    "cv": 3,
    "scoring": "f1_macro",
    "verbose": 2,
    "n_jobs": 1,
}

PARAM_SPACE = {
    "xgb__n_estimators": [200, 300, 500, 700],
    "xgb__max_depth": [4, 6, 8, 10],
    "xgb__learning_rate": [0.03, 0.05, 0.08, 0.10],
    "xgb__subsample": [0.7, 0.8, 0.9, 1.0],
    "xgb__colsample_bytree": [0.7, 0.8, 0.9, 1.0],
    "xgb__min_child_weight": [1, 3, 5, 7],
    "xgb__gamma": [0, 0.1, 0.3, 0.5],
    "xgb__reg_alpha": [0, 0.01, 0.1],
    "xgb__reg_lambda": [1, 1.5, 2, 3],
}

2. Small helper functions

def clean_columns(frame):
    frame = frame.copy()
    frame.columns = (
        frame.columns
        .str.strip()
        .str.lower()
        .str.replace(" ", "_")
        .str.replace("-", "_")
    )
    return frame


def summarize_missing_values(frame):
    missing_summary = pd.DataFrame({
        "missing_count": frame.isna().sum(),
        "missing_percent": (frame.isna().mean() * 100).round(2),
    })

    return missing_summary.sort_values("missing_count", ascending=False)


def score_multiclass_model(y_true, y_pred):
    return {
        "accuracy": accuracy_score(y_true, y_pred),
        "f1_macro": f1_score(y_true, y_pred, average="macro"),
        "precision_macro": precision_score(y_true, y_pred, average="macro"),
        "recall_macro": recall_score(y_true, y_pred, average="macro"),
    }


def make_xgb_pipeline(prep_step, xgb_params):
    return Pipeline(
        steps=[
            ("prep", prep_step),
            ("xgb", XGBClassifier(**xgb_params)),
        ]
    )

3. Load and inspect data

data = pd.read_csv(SETUP["data_path"])
data = clean_columns(data)

print("Shape:", data.shape)
display(data.head())
display(data.dtypes.to_frame("dtype").T)

Shape: (581012, 55)

	elevation	aspect	slope	horizontal_distance_to_hydrology	vertical_distance_to_hydrology	horizontal_distance_to_roadways	hillshade_9am	hillshade_noon	hillshade_3pm	horizontal_distance_to_fire_points	...	soil_type32	soil_type33	soil_type34	soil_type35	soil_type36	soil_type37	soil_type38	soil_type39	soil_type40	cover_type
0	2596	51	3	258	0	510	221	232	148	6279	...	0	0	0	0	0	0	0	0	0	5
1	2590	56	2	212	-6	390	220	235	151	6225	...	0	0	0	0	0	0	0	0	0	5
2	2804	139	9	268	65	3180	234	238	135	6121	...	0	0	0	0	0	0	0	0	0	2
3	2785	155	18	242	118	3090	238	238	122	6211	...	0	0	0	0	0	0	0	0	0	2
4	2595	45	2	153	-1	391	220	234	150	6172	...	0	0	0	0	0	0	0	0	0	5

5 rows × 55 columns

	elevation	aspect	slope	horizontal_distance_to_hydrology	vertical_distance_to_hydrology	horizontal_distance_to_roadways	hillshade_9am	hillshade_noon	hillshade_3pm	horizontal_distance_to_fire_points	...	soil_type32	soil_type33	soil_type34	soil_type35	soil_type36	soil_type37	soil_type38	soil_type39	soil_type40	cover_type
dtype	int64	int64	int64	int64	int64	int64	int64	int64	int64	int64	...	int64	int64	int64	int64	int64	int64	int64	int64	int64	int64

1 rows × 55 columns

display(data.describe().T)
display(summarize_missing_values(data).head(20))

print("Duplicate rows:", data.duplicated().sum())

	count	mean	std	min	25%	50%	75%	max
elevation	581012.0	2959.365301	279.984734	1859.0	2809.0	2996.0	3163.0	3858.0
aspect	581012.0	155.656807	111.913721	0.0	58.0	127.0	260.0	360.0
slope	581012.0	14.103704	7.488242	0.0	9.0	13.0	18.0	66.0
horizontal_distance_to_hydrology	581012.0	269.428217	212.549356	0.0	108.0	218.0	384.0	1397.0
vertical_distance_to_hydrology	581012.0	46.418855	58.295232	-173.0	7.0	30.0	69.0	601.0
horizontal_distance_to_roadways	581012.0	2350.146611	1559.254870	0.0	1106.0	1997.0	3328.0	7117.0
hillshade_9am	581012.0	212.146049	26.769889	0.0	198.0	218.0	231.0	254.0
hillshade_noon	581012.0	223.318716	19.768697	0.0	213.0	226.0	237.0	254.0
hillshade_3pm	581012.0	142.528263	38.274529	0.0	119.0	143.0	168.0	254.0
horizontal_distance_to_fire_points	581012.0	1980.291226	1324.195210	0.0	1024.0	1710.0	2550.0	7173.0
wilderness_area1	581012.0	0.448865	0.497379	0.0	0.0	0.0	1.0	1.0
wilderness_area2	581012.0	0.051434	0.220882	0.0	0.0	0.0	0.0	1.0
wilderness_area3	581012.0	0.436074	0.495897	0.0	0.0	0.0	1.0	1.0
wilderness_area4	581012.0	0.063627	0.244087	0.0	0.0	0.0	0.0	1.0
soil_type1	581012.0	0.005217	0.072039	0.0	0.0	0.0	0.0	1.0
soil_type2	581012.0	0.012952	0.113066	0.0	0.0	0.0	0.0	1.0
soil_type3	581012.0	0.008301	0.090731	0.0	0.0	0.0	0.0	1.0
soil_type4	581012.0	0.021335	0.144499	0.0	0.0	0.0	0.0	1.0
soil_type5	581012.0	0.002749	0.052356	0.0	0.0	0.0	0.0	1.0
soil_type6	581012.0	0.011316	0.105775	0.0	0.0	0.0	0.0	1.0
soil_type7	581012.0	0.000181	0.013442	0.0	0.0	0.0	0.0	1.0
soil_type8	581012.0	0.000308	0.017550	0.0	0.0	0.0	0.0	1.0
soil_type9	581012.0	0.001974	0.044387	0.0	0.0	0.0	0.0	1.0
soil_type10	581012.0	0.056168	0.230245	0.0	0.0	0.0	0.0	1.0
soil_type11	581012.0	0.021359	0.144579	0.0	0.0	0.0	0.0	1.0
soil_type12	581012.0	0.051584	0.221186	0.0	0.0	0.0	0.0	1.0
soil_type13	581012.0	0.030001	0.170590	0.0	0.0	0.0	0.0	1.0
soil_type14	581012.0	0.001031	0.032092	0.0	0.0	0.0	0.0	1.0
soil_type15	581012.0	0.000005	0.002272	0.0	0.0	0.0	0.0	1.0
soil_type16	581012.0	0.004897	0.069804	0.0	0.0	0.0	0.0	1.0
soil_type17	581012.0	0.005890	0.076518	0.0	0.0	0.0	0.0	1.0
soil_type18	581012.0	0.003268	0.057077	0.0	0.0	0.0	0.0	1.0
soil_type19	581012.0	0.006921	0.082902	0.0	0.0	0.0	0.0	1.0
soil_type20	581012.0	0.015936	0.125228	0.0	0.0	0.0	0.0	1.0
soil_type21	581012.0	0.001442	0.037950	0.0	0.0	0.0	0.0	1.0
soil_type22	581012.0	0.057439	0.232681	0.0	0.0	0.0	0.0	1.0
soil_type23	581012.0	0.099399	0.299197	0.0	0.0	0.0	0.0	1.0
soil_type24	581012.0	0.036622	0.187833	0.0	0.0	0.0	0.0	1.0
soil_type25	581012.0	0.000816	0.028551	0.0	0.0	0.0	0.0	1.0
soil_type26	581012.0	0.004456	0.066605	0.0	0.0	0.0	0.0	1.0
soil_type27	581012.0	0.001869	0.043193	0.0	0.0	0.0	0.0	1.0
soil_type28	581012.0	0.001628	0.040318	0.0	0.0	0.0	0.0	1.0
soil_type29	581012.0	0.198356	0.398762	0.0	0.0	0.0	0.0	1.0
soil_type30	581012.0	0.051927	0.221879	0.0	0.0	0.0	0.0	1.0
soil_type31	581012.0	0.044175	0.205483	0.0	0.0	0.0	0.0	1.0
soil_type32	581012.0	0.090392	0.286743	0.0	0.0	0.0	0.0	1.0
soil_type33	581012.0	0.077716	0.267725	0.0	0.0	0.0	0.0	1.0
soil_type34	581012.0	0.002773	0.052584	0.0	0.0	0.0	0.0	1.0
soil_type35	581012.0	0.003255	0.056957	0.0	0.0	0.0	0.0	1.0
soil_type36	581012.0	0.000205	0.014310	0.0	0.0	0.0	0.0	1.0
soil_type37	581012.0	0.000513	0.022641	0.0	0.0	0.0	0.0	1.0
soil_type38	581012.0	0.026803	0.161508	0.0	0.0	0.0	0.0	1.0
soil_type39	581012.0	0.023762	0.152307	0.0	0.0	0.0	0.0	1.0
soil_type40	581012.0	0.015060	0.121791	0.0	0.0	0.0	0.0	1.0
cover_type	581012.0	2.051471	1.396504	1.0	1.0	2.0	2.0	7.0

	missing_count	missing_percent
elevation	0	0.0
aspect	0	0.0
slope	0	0.0
horizontal_distance_to_hydrology	0	0.0
vertical_distance_to_hydrology	0	0.0
horizontal_distance_to_roadways	0	0.0
hillshade_9am	0	0.0
hillshade_noon	0	0.0
hillshade_3pm	0	0.0
horizontal_distance_to_fire_points	0	0.0
wilderness_area1	0	0.0
wilderness_area2	0	0.0
wilderness_area3	0	0.0
wilderness_area4	0	0.0
soil_type1	0	0.0
soil_type2	0	0.0
soil_type3	0	0.0
soil_type4	0	0.0
soil_type5	0	0.0
soil_type6	0	0.0

Duplicate rows: 0

4. Target preparation

target_name = SETUP["target"]

print("Original target distribution:")
display(data[target_name].value_counts().sort_index().to_frame("count"))

print("Original target proportions:")
display((data[target_name].value_counts(normalize=True).sort_index() * 100).round(2).to_frame("percent"))

Original target distribution:

	count
cover_type
1	211840
2	283301
3	35754
4	2747
5	9493
6	17367
7	20510

Original target proportions:

	percent
cover_type
1	36.46
2	48.76
3	6.15
4	0.47
5	1.63
6	2.99
7	3.53

# XGBoost expects labels from 0 to num_classes - 1.
# The original Cover_Type labels are 1 to 7, so they are shifted to 0 to 6.
data[target_name] = data[target_name] - 1

print("Shifted target distribution:")
display(data[target_name].value_counts().sort_index().to_frame("count"))

Shifted target distribution:

	count
cover_type
0	211840
1	283301
2	35754
3	2747
4	9493
5	17367
6	20510

5. Feature groups

all_features = [column for column in data.columns if column != target_name]

wilderness_features = [
    column for column in all_features
    if column.startswith("wilderness_area")
]

soil_features = [
    column for column in all_features
    if column.startswith("soil_type")
]

encoded_binary_features = wilderness_features + soil_features

continuous_features = [
    column for column in all_features
    if column not in encoded_binary_features
]

print("Continuous features:", len(continuous_features))
print("Binary encoded features:", len(encoded_binary_features))

Continuous features: 10
Binary encoded features: 44

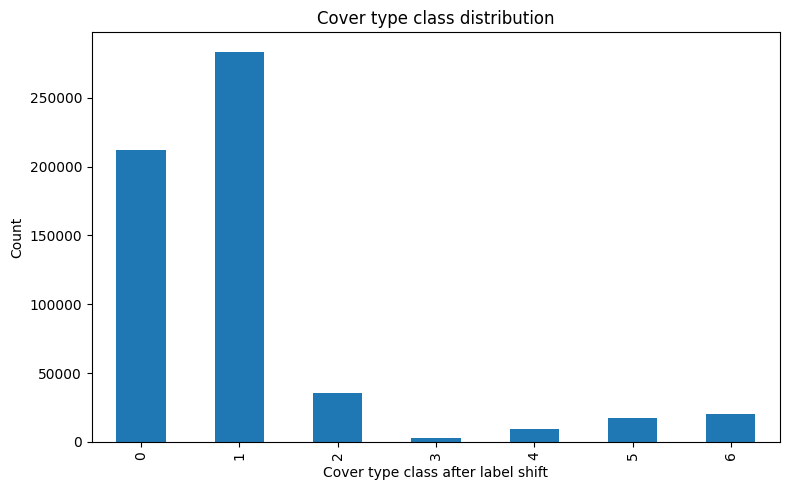

plt.figure(figsize=(8, 5))
data[target_name].value_counts().sort_index().plot(kind="bar")
plt.title("Cover type class distribution")
plt.xlabel("Cover type class after label shift")
plt.ylabel("Count")
plt.tight_layout()
plt.show()

6. Train, validation, and test split

features = data.drop(columns=target_name)
target = data[target_name]

X_train_valid, X_test, y_train_valid, y_test = train_test_split(
    features,
    target,
    test_size=SETUP["test_size"],
    random_state=SETUP["seed"],
    stratify=target,
)

X_train, X_valid, y_train, y_valid = train_test_split(
    X_train_valid,
    y_train_valid,
    test_size=SETUP["validation_size_from_train_val"],
    random_state=SETUP["seed"],
    stratify=y_train_valid,
)

print("Train:", X_train.shape, y_train.shape)
print("Validation:", X_valid.shape, y_valid.shape)
print("Test:", X_test.shape, y_test.shape)

Train: (348606, 54) (348606,)
Validation: (116203, 54) (116203,)
Test: (116203, 54) (116203,)

7. Preprocessing

preprocess = ColumnTransformer(
    transformers=[
        ("scale_numeric", StandardScaler(), continuous_features),
        ("keep_binary", "passthrough", encoded_binary_features),
    ],
    remainder="drop",
)

preprocess

ColumnTransformer(transformers=[('scale_numeric', StandardScaler(),
                                 ['elevation', 'aspect', 'slope',
                                  'horizontal_distance_to_hydrology',
                                  'vertical_distance_to_hydrology',
                                  'horizontal_distance_to_roadways',
                                  'hillshade_9am', 'hillshade_noon',
                                  'hillshade_3pm',
                                  'horizontal_distance_to_fire_points']),
                                ('keep_binary', 'passthrough',
                                 ['wilderness_area1', 'wilderness_are...
                                  'soil_type1', 'soil_type2', 'soil_type3',
                                  'soil_type4', 'soil_type5', 'soil_type6',
                                  'soil_type7', 'soil_type8', 'soil_type9',
                                  'soil_type10', 'soil_type11', 'soil_type12',
                                  'soil_type13', 'soil_type14', 'soil_type15',
                                  'soil_type16', 'soil_type17', 'soil_type18',
                                  'soil_type19', 'soil_type20', 'soil_type21',
                                  'soil_type22', 'soil_type23', 'soil_type24',
                                  'soil_type25', 'soil_type26', ...])])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

8. Baseline XGBoost

baseline_pipe = make_xgb_pipeline(
    prep_step=preprocess,
    xgb_params=XGB_BASE,
)

baseline_pipe.fit(X_train, y_train)

baseline_valid_pred = baseline_pipe.predict(X_valid)
baseline_scores = score_multiclass_model(y_valid, baseline_valid_pred)

baseline_scores

{'accuracy': 0.8688243849126098,
 'f1_macro': 0.8519775932545374,
 'precision_macro': 0.8843506886108257,
 'recall_macro': 0.8302273974629332}

print("Baseline validation classification report:")
print(classification_report(y_valid, baseline_valid_pred))

Baseline validation classification report:
              precision    recall  f1-score   support

           0       0.86      0.84      0.85     42368
           1       0.86      0.90      0.88     56660
           2       0.90      0.91      0.90      7151
           3       0.90      0.88      0.89       549
           4       0.87      0.55      0.67      1899
           5       0.85      0.82      0.84      3474
           6       0.95      0.91      0.93      4102

    accuracy                           0.87    116203
   macro avg       0.88      0.83      0.85    116203
weighted avg       0.87      0.87      0.87    116203

9. Hyperparameter tuning

tuning_pipe = make_xgb_pipeline(
    prep_step=preprocess,
    xgb_params=XGB_BASE,
)

search = RandomizedSearchCV(
    estimator=tuning_pipe,
    param_distributions=PARAM_SPACE,
    n_iter=SEARCH["n_iter"],
    scoring=SEARCH["scoring"],
    cv=SEARCH["cv"],
    verbose=SEARCH["verbose"],
    random_state=SETUP["seed"],
    n_jobs=SEARCH["n_jobs"],
)

search.fit(X_train, y_train)

print("Best CV score:", search.best_score_)
print("Best parameters:")
search.best_params_

Fitting 3 folds for each of 20 candidates, totalling 60 fits
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 2.2min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 3.1min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 2.2min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.8min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.8min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.8min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 2.4min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 2.4min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 2.4min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.9; total time= 2.4min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.9; total time= 2.5min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.9; total time= 2.5min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 2.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 2.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.1, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 2.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 4.1min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 4.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=3, xgb__subsample=0.7; total time= 4.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 9.4min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 9.0min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.9; total time= 8.8min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=2, xgb__subsample=0.8; total time= 3.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=2, xgb__subsample=0.8; total time= 3.0min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0, xgb__reg_lambda=2, xgb__subsample=0.8; total time= 3.0min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.1, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 4.1min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.1, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 3.6min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.1, xgb__learning_rate=0.08, xgb__max_depth=10, xgb__min_child_weight=1, xgb__n_estimators=300, xgb__reg_alpha=0.01, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 3.7min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=500, xgb__reg_alpha=0.1, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 4.5min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=500, xgb__reg_alpha=0.1, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 4.4min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.5, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=500, xgb__reg_alpha=0.1, xgb__reg_lambda=2, xgb__subsample=0.9; total time= 4.5min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.6min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.6min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.1, xgb__learning_rate=0.03, xgb__max_depth=8, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.7min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 6.2min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 6.2min
[CV] END xgb__colsample_bytree=0.9, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=700, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 5.9min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.0min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.0min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.3, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=1.0; total time= 3.3min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.5, xgb__learning_rate=0.08, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 3.3min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.5, xgb__learning_rate=0.08, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 3.2min
[CV] END xgb__colsample_bytree=1.0, xgb__gamma=0.5, xgb__learning_rate=0.08, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=500, xgb__reg_alpha=0, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 3.3min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.8min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.7min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=7, xgb__n_estimators=300, xgb__reg_alpha=0.1, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.7min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.5, xgb__learning_rate=0.05, xgb__max_depth=6, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.9; total time= 1.7min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.5, xgb__learning_rate=0.05, xgb__max_depth=6, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.9; total time= 1.7min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0.5, xgb__learning_rate=0.05, xgb__max_depth=6, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.9; total time= 1.7min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.8; total time= 2.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.8; total time= 2.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=10, xgb__min_child_weight=5, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.8; total time= 2.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=500, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 3.8min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=500, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 4.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0.1, xgb__learning_rate=0.05, xgb__max_depth=4, xgb__min_child_weight=3, xgb__n_estimators=500, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=0.7; total time= 4.3min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.8; total time= 1.9min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.8; total time= 1.9min
[CV] END xgb__colsample_bytree=0.7, xgb__gamma=0, xgb__learning_rate=0.03, xgb__max_depth=6, xgb__min_child_weight=1, xgb__n_estimators=200, xgb__reg_alpha=0, xgb__reg_lambda=1, xgb__subsample=0.8; total time= 2.1min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.7min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.8min
[CV] END xgb__colsample_bytree=0.8, xgb__gamma=0, xgb__learning_rate=0.1, xgb__max_depth=6, xgb__min_child_weight=7, xgb__n_estimators=200, xgb__reg_alpha=0.01, xgb__reg_lambda=1.5, xgb__subsample=1.0; total time= 1.7min
Best CV score: 0.9208403188731179
Best parameters:

{'xgb__subsample': 0.9,
 'xgb__reg_lambda': 1.5,
 'xgb__reg_alpha': 0.01,
 'xgb__n_estimators': 700,
 'xgb__min_child_weight': 3,
 'xgb__max_depth': 10,
 'xgb__learning_rate': 0.05,
 'xgb__gamma': 0,
 'xgb__colsample_bytree': 0.8}

10. Validation comparison

tuned_pipe = search.best_estimator_

tuned_valid_pred = tuned_pipe.predict(X_valid)
tuned_scores = score_multiclass_model(y_valid, tuned_valid_pred)

validation_results = pd.DataFrame([
    {"experiment": "baseline_xgb", **baseline_scores},
    {"experiment": "tuned_xgb", **tuned_scores},
]).sort_values("f1_macro", ascending=False)

validation_results.round(4)

	experiment	accuracy	f1_macro	precision_macro	recall_macro
1	tuned_xgb	0.9509	0.932	0.9398	0.9246
0	baseline_xgb	0.8688	0.852	0.8844	0.8302

print("Tuned validation classification report:")
print(classification_report(y_valid, tuned_valid_pred))

Tuned validation classification report:
              precision    recall  f1-score   support

           0       0.96      0.94      0.95     42368
           1       0.95      0.97      0.96     56660
           2       0.95      0.96      0.96      7151
           3       0.91      0.89      0.90       549
           4       0.91      0.84      0.87      1899
           5       0.93      0.92      0.93      3474
           6       0.98      0.96      0.97      4102

    accuracy                           0.95    116203
   macro avg       0.94      0.92      0.93    116203
weighted avg       0.95      0.95      0.95    116203

11. Final training on train + validation

final_pipeline = search.best_estimator_

final_pipeline.fit(X_train_valid, y_train_valid)

Pipeline(steps=[('prep',
                 ColumnTransformer(transformers=[('scale_numeric',
                                                  StandardScaler(),
                                                  ['elevation', 'aspect',
                                                   'slope',
                                                   'horizontal_distance_to_hydrology',
                                                   'vertical_distance_to_hydrology',
                                                   'horizontal_distance_to_roadways',
                                                   'hillshade_9am',
                                                   'hillshade_noon',
                                                   'hillshade_3pm',
                                                   'horizontal_distance_to_fire_points']),
                                                 ('keep_binary', 'passthrough',
                                                  ['wildernes...
                               feature_types=None, feature_weights=None,
                               gamma=0, grow_policy=None, importance_type=None,
                               interaction_constraints=None, learning_rate=0.05,
                               max_bin=None, max_cat_threshold=None,
                               max_cat_to_onehot=None, max_delta_step=None,
                               max_depth=10, max_leaves=None,
                               min_child_weight=3, missing=nan,
                               monotone_constraints=None, multi_strategy=None,
                               n_estimators=700, n_jobs=1, num_class=7, ...))])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

12. Final test evaluation

test_predictions = final_pipeline.predict(X_test)
test_scores = score_multiclass_model(y_test, test_predictions)

pd.DataFrame([test_scores]).round(4)

	accuracy	f1_macro	precision_macro	recall_macro
0	0.9554	0.9371	0.9475	0.9275

print("Final test classification report:")
print(classification_report(y_test, test_predictions))

Final test classification report:
              precision    recall  f1-score   support

           0       0.96      0.94      0.95     42368
           1       0.95      0.97      0.96     56661
           2       0.96      0.96      0.96      7151
           3       0.91      0.87      0.89       549
           4       0.94      0.86      0.90      1899
           5       0.94      0.92      0.93      3473
           6       0.97      0.97      0.97      4102

    accuracy                           0.96    116203
   macro avg       0.95      0.93      0.94    116203
weighted avg       0.96      0.96      0.96    116203

13. Confusion matrix

test_cm = confusion_matrix(y_test, test_predictions)

fig, ax = plt.subplots(figsize=(8, 6))
display_cm = ConfusionMatrixDisplay(confusion_matrix=test_cm)
display_cm.plot(values_format="d", ax=ax)
ax.set_title("Final XGBoost confusion matrix")
plt.tight_layout()
plt.show()

14. Feature importance

ordered_feature_names = continuous_features + encoded_binary_features

xgb_final = final_pipeline.named_steps["xgb"]

importance_table = (
    pd.DataFrame({
        "feature": ordered_feature_names,
        "importance": xgb_final.feature_importances_,
    })
    .sort_values("importance", ascending=False)
    .reset_index(drop=True)
)

display(importance_table.head(20))

	feature	importance
0	wilderness_area4	0.142367
1	soil_type39	0.055790
2	soil_type4	0.054114
3	soil_type22	0.049668
4	soil_type2	0.041354
5	soil_type38	0.035727
6	elevation	0.034186
7	soil_type12	0.034011
8	soil_type40	0.033555
9	soil_type37	0.033141
10	wilderness_area1	0.030439
11	soil_type35	0.026784
12	soil_type3	0.023128
13	soil_type32	0.022689
14	soil_type21	0.022142
15	wilderness_area2	0.021467
16	wilderness_area3	0.020581
17	soil_type31	0.018216
18	soil_type27	0.018177
19	soil_type23	0.016005

top_features = importance_table.head(20).sort_values("importance")

plt.figure(figsize=(10, 8))
plt.barh(top_features["feature"], top_features["importance"])
plt.title("Top 20 XGBoost feature importances")
plt.xlabel("Importance")
plt.ylabel("Feature")
plt.tight_layout()
plt.show()

15. Save final model

model_dir = Path(SETUP["model_dir"])
model_dir.mkdir(parents=True, exist_ok=True)

model_path = model_dir / SETUP["model_name"]

joblib.dump(final_pipeline, model_path)

print("Saved final pipeline to:", model_path)

Saved final pipeline to: ..\models\forest_cover_xgb_pipeline.pkl

Final note

The saved object is the full pipeline, not only the XGBoost estimator.
That means it includes both preprocessing and the trained model.
