# !pip install ucimlrepo
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from ucimlrepo import fetch_ucirepo
from sklearn.model_selection import (
train_test_split,
StratifiedKFold,
cross_validate,
GridSearchCV
)
from sklearn.pipeline import Pipeline
from sklearn.compose import ColumnTransformer
from sklearn.preprocessing import StandardScaler
from sklearn.impute import SimpleImputer
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC
from sklearn.neighbors import KNeighborsClassifier
from sklearn.tree import DecisionTreeClassifier
from sklearn.ensemble import (
BaggingClassifier,
RandomForestClassifier,
AdaBoostClassifier
)
from sklearn.metrics import (
accuracy_score,
f1_score,
precision_score,
recall_score,
classification_report,
ConfusionMatrixDisplay
)
zoo = fetch_ucirepo(id=111)
X = zoo.data.features
y = zoo.data.targets.squeeze()
class_map = {
1: "Mammal",
2: "Bird",
3: "Reptile",
4: "Fish",
5: "Amphibian",
6: "Bug",
7: "Invertebrate"
}
y = y.map(class_map)
print("Feature shape:", X.shape)
print("Target shape:", y.shape)
display(X.head())
display(y.value_counts())
Feature shape: (101, 16)
Target shape: (101,)
| hair | feathers | eggs | milk | airborne | aquatic | predator | toothed | backbone | breathes | venomous | fins | legs | tail | domestic | catsize | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 4 | 0 | 0 | 1 |
| 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 4 | 1 | 0 | 1 |
| 2 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 0 | 0 |
| 3 | 1 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 4 | 0 | 0 | 1 |
| 4 | 1 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 4 | 1 | 0 | 1 |
type
Mammal 41
Bird 20
Fish 13
Invertebrate 10
Bug 8
Reptile 5
Amphibian 4
Name: count, dtype: int64
print("Missing values:")
display(X.isna().sum())
print("Target distribution:")
display(y.value_counts())
print("Feature columns:")
print(X.columns.tolist())
Missing values:
hair 0
feathers 0
eggs 0
milk 0
airborne 0
aquatic 0
predator 0
toothed 0
backbone 0
breathes 0
venomous 0
fins 0
legs 0
tail 0
domestic 0
catsize 0
dtype: int64
Target distribution:
type
Mammal 41
Bird 20
Fish 13
Invertebrate 10
Bug 8
Reptile 5
Amphibian 4
Name: count, dtype: int64
Feature columns:
['hair', 'feathers', 'eggs', 'milk', 'airborne', 'aquatic', 'predator', 'toothed', 'backbone', 'breathes', 'venomous', 'fins', 'legs', 'tail', 'domestic', 'catsize']
X_train_full, X_test, y_train_full, y_test = train_test_split(
X,
y,
test_size=0.15,
random_state=42,
stratify=y
)
X_train, X_val, y_train, y_val = train_test_split(
X_train_full,
y_train_full,
test_size=0.1765,
random_state=42,
stratify=y_train_full
)
print("Train size:", X_train.shape)
print("Validation size:", X_val.shape)
print("Test size:", X_test.shape)
Train size: (69, 16)
Validation size: (16, 16)
Test size: (16, 16)
numeric_features = X.columns.tolist()
scaled_preprocess = ColumnTransformer([
("num", Pipeline([
("imputer", SimpleImputer(strategy="median")),
("scaler", StandardScaler())
]), numeric_features)
])
tree_preprocess = ColumnTransformer([
("num", SimpleImputer(strategy="median"), numeric_features)
])
models = {
"Regularized Logistic Regression": Pipeline([
("prep", scaled_preprocess),
("model", LogisticRegression(
max_iter=1000,
class_weight="balanced",
C=0.1
))
]),
"Regularized Linear SVM": Pipeline([
("prep", scaled_preprocess),
("model", LinearSVC(
C=0.1,
class_weight="balanced",
random_state=42
))
]),
"KNN": Pipeline([
("prep", scaled_preprocess),
("model", KNeighborsClassifier(
n_neighbors=3
))
]),
"Shallow Decision Tree": Pipeline([
("prep", tree_preprocess),
("model", DecisionTreeClassifier(
max_depth=3,
min_samples_leaf=2,
class_weight="balanced",
random_state=42
))
]),
"Bagging: Shallow Trees": Pipeline([
("prep", tree_preprocess),
("model", BaggingClassifier(
estimator=DecisionTreeClassifier(
max_depth=2,
min_samples_leaf=2,
class_weight="balanced",
random_state=42
),
n_estimators=30,
random_state=42
))
]),
"Random Forest: Shallow Trees": Pipeline([
("prep", tree_preprocess),
("model", RandomForestClassifier(
n_estimators=50,
max_depth=3,
min_samples_leaf=2,
class_weight="balanced",
random_state=42
))
]),
"AdaBoost: Decision Stumps": Pipeline([
("prep", tree_preprocess),
("model", AdaBoostClassifier(
estimator=DecisionTreeClassifier(
max_depth=1,
random_state=42
),
n_estimators=30,
learning_rate=0.5,
random_state=42
))
])
}
cv_results = []
for model_name, model_pipeline in models.items():
scores = cross_validate(
model_pipeline,
X_train_full,
y_train_full,
cv=cv,
scoring={
"accuracy": "accuracy",
"f1_macro": "f1_macro",
"precision_macro": "precision_macro",
"recall_macro": "recall_macro"
}
)
cv_results.append({
"model": model_name,
"accuracy": scores["test_accuracy"].mean(),
"f1_macro": scores["test_f1_macro"].mean(),
"precision_macro": scores["test_precision_macro"].mean(),
"recall_macro": scores["test_recall_macro"].mean()
})
cv_results_df = pd.DataFrame(cv_results)
cv_results_df = cv_results_df.sort_values("f1_macro", ascending=False)
display(cv_results_df.round(3))
c:\Users\zirad\AppData\Local\Programs\Python\Python312\Lib\site-packages\sklearn\metrics\_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
_warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
c:\Users\zirad\AppData\Local\Programs\Python\Python312\Lib\site-packages\sklearn\metrics\_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
_warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
c:\Users\zirad\AppData\Local\Programs\Python\Python312\Lib\site-packages\sklearn\metrics\_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
_warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
c:\Users\zirad\AppData\Local\Programs\Python\Python312\Lib\site-packages\sklearn\metrics\_classification.py:1731: UndefinedMetricWarning: Precision is ill-defined and being set to 0.0 in labels with no predicted samples. Use `zero_division` parameter to control this behavior.
_warn_prf(average, modifier, f"{metric.capitalize()} is", result.shape[0])
| model | accuracy | f1_macro | precision_macro | recall_macro | |
|---|---|---|---|---|---|
| 0 | Regularized Logistic Regression | 0.976 | 0.953 | 0.976 | 0.946 |
| 4 | Bagging: Shallow Trees | 0.976 | 0.945 | 0.986 | 0.929 |
| 1 | Regularized Linear SVM | 0.965 | 0.914 | 0.952 | 0.911 |
| 5 | Random Forest: Shallow Trees | 0.965 | 0.914 | 0.952 | 0.911 |
| 2 | KNN | 0.953 | 0.876 | 0.908 | 0.893 |
| 6 | AdaBoost: Decision Stumps | 0.894 | 0.719 | 0.684 | 0.786 |
| 3 | Shallow Decision Tree | 0.610 | 0.527 | 0.527 | 0.655 |

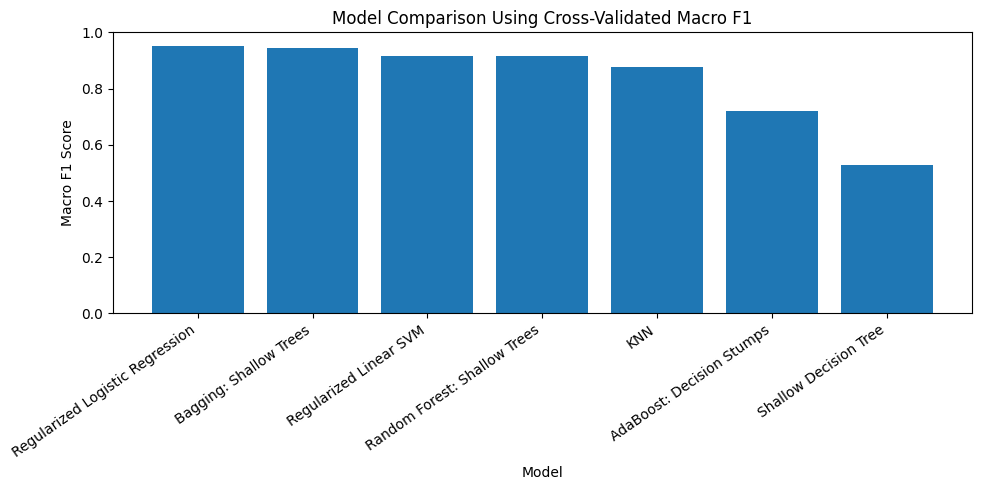

plt.figure(figsize=(10, 5))
plt.bar(
cv_results_df["model"],
cv_results_df["f1_macro"]
)
plt.title("Model Comparison Using Cross-Validated Macro F1")
plt.xlabel("Model")
plt.ylabel("Macro F1 Score")
plt.xticks(rotation=35, ha="right")
plt.tight_layout()
plt.show()
param_grids = {
"Regularized Logistic Regression": {
"model__C": [0.01, 0.1, 1, 10]
},
"Regularized Linear SVM": {
"model__C": [0.01, 0.1, 1, 10]
},
"Shallow Decision Tree": {
"model__max_depth": [1, 2, 3, 4],
"model__min_samples_leaf": [1, 2, 4]
},
"Bagging: Shallow Trees": {
"model__n_estimators": [10, 30, 50],
"model__estimator__max_depth": [1, 2, 3],
"model__estimator__min_samples_leaf": [1, 2]
},
"Random Forest: Shallow Trees": {
"model__n_estimators": [30, 50, 100],
"model__max_depth": [2, 3, 4],
"model__min_samples_leaf": [1, 2, 4]
},
"AdaBoost: Decision Stumps": {
"model__n_estimators": [10, 30, 50],
"model__learning_rate": [0.1, 0.5, 1.0]
}
}
tuning_results = []
best_models = {}
for model_name, param_grid in param_grids.items():
print(f"Tuning: {model_name}")
grid_search = GridSearchCV(
estimator=models[model_name],
param_grid=param_grid,
scoring="f1_macro",
cv=cv,
n_jobs=-1
)
grid_search.fit(X_train, y_train)
best_models[model_name] = grid_search.best_estimator_
val_pred = grid_search.predict(X_val)
tuning_results.append({
"model": model_name,
"best_cv_f1_macro": grid_search.best_score_,
"validation_accuracy": accuracy_score(y_val, val_pred),
"validation_f1_macro": f1_score(y_val, val_pred, average="macro"),
"validation_precision_macro": precision_score(y_val, val_pred, average="macro", zero_division=0),
"validation_recall_macro": recall_score(y_val, val_pred, average="macro", zero_division=0),
"best_params": grid_search.best_params_
})
tuning_results_df = pd.DataFrame(tuning_results)
tuning_results_df = tuning_results_df.sort_values("validation_f1_macro", ascending=False)
display(tuning_results_df)
Tuning: Regularized Logistic Regression
Tuning: Regularized Linear SVM
Tuning: Shallow Decision Tree
Tuning: Bagging: Shallow Trees
Tuning: Random Forest: Shallow Trees
Tuning: AdaBoost: Decision Stumps
| model | best_cv_f1_macro | validation_accuracy | validation_f1_macro | validation_precision_macro | validation_recall_macro | best_params | |
|---|---|---|---|---|---|---|---|
| 0 | Regularized Logistic Regression | 0.780241 | 1.0000 | 1.000000 | 1.000000 | 1.000000 | {'model__C': 0.1} |
| 1 | Regularized Linear SVM | 0.787415 | 1.0000 | 1.000000 | 1.000000 | 1.000000 | {'model__C': 0.1} |
| 3 | Bagging: Shallow Trees | 0.799969 | 1.0000 | 1.000000 | 1.000000 | 1.000000 | {'model__estimator__max_depth': 3, 'model__est... |
| 5 | AdaBoost: Decision Stumps | 0.735419 | 1.0000 | 1.000000 | 1.000000 | 1.000000 | {'model__learning_rate': 1.0, 'model__n_estima... |
| 4 | Random Forest: Shallow Trees | 0.871769 | 0.9375 | 0.809524 | 0.785714 | 0.857143 | {'model__max_depth': 3, 'model__min_samples_le... |
| 2 | Shallow Decision Tree | 0.676594 | 0.8125 | 0.595238 | 0.547619 | 0.714286 | {'model__max_depth': 4, 'model__min_samples_le... |
best_model_name = tuning_results_df.iloc[0]["model"]
best_model = best_models[best_model_name]
print("Best selected model:")
print(best_model_name)
print("\nBest parameters:")
print(tuning_results_df.iloc[0]["best_params"])
Best selected model:
Regularized Logistic Regression
Best parameters:
{'model__C': 0.1}
val_pred = best_model.predict(X_val)
print("Validation Accuracy:", accuracy_score(y_val, val_pred))
print("Validation Macro F1:", f1_score(y_val, val_pred, average="macro"))
print("\nValidation Classification Report:")
print(classification_report(y_val, val_pred, zero_division=0))
Validation Accuracy: 1.0
Validation Macro F1: 1.0
Validation Classification Report:
precision recall f1-score support
Amphibian 1.00 1.00 1.00 1
Bird 1.00 1.00 1.00 3
Bug 1.00 1.00 1.00 1
Fish 1.00 1.00 1.00 2
Invertebrate 1.00 1.00 1.00 1
Mammal 1.00 1.00 1.00 7
Reptile 1.00 1.00 1.00 1
accuracy 1.00 16
macro avg 1.00 1.00 1.00 16
weighted avg 1.00 1.00 1.00 16

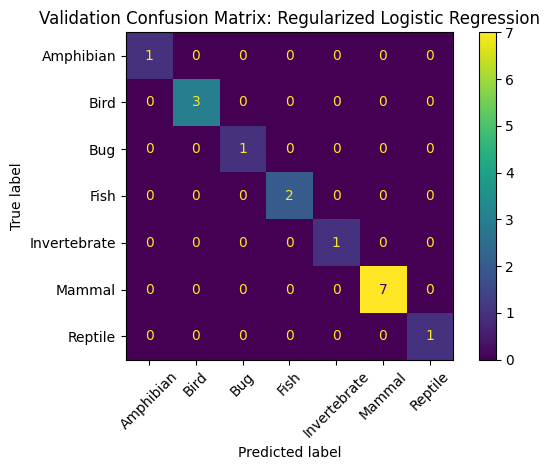

ConfusionMatrixDisplay.from_estimator(
best_model,
X_val,
y_val,
xticks_rotation=45
)
plt.title(f"Validation Confusion Matrix: {best_model_name}")
plt.tight_layout()
plt.show()
final_model = best_model
final_model.fit(X_train_full, y_train_full)
test_pred = final_model.predict(X_test)
print("Final Test Accuracy:", accuracy_score(y_test, test_pred))
print("Final Test Macro F1:", f1_score(y_test, test_pred, average="macro"))
print("Final Test Precision Macro:", precision_score(y_test, test_pred, average="macro", zero_division=0))
print("Final Test Recall Macro:", recall_score(y_test, test_pred, average="macro", zero_division=0))
print("\nFinal Test Classification Report:")
print(classification_report(y_test, test_pred, zero_division=0))
Final Test Accuracy: 0.9375
Final Test Macro F1: 0.8367346938775511
Final Test Precision Macro: 0.8214285714285714
Final Test Recall Macro: 0.8571428571428571
Final Test Classification Report:
precision recall f1-score support
Amphibian 1.00 1.00 1.00 1
Bird 0.75 1.00 0.86 3
Bug 1.00 1.00 1.00 1
Fish 1.00 1.00 1.00 2
Invertebrate 1.00 1.00 1.00 2
Mammal 1.00 1.00 1.00 6
Reptile 0.00 0.00 0.00 1
accuracy 0.94 16
macro avg 0.82 0.86 0.84 16
weighted avg 0.89 0.94 0.91 16

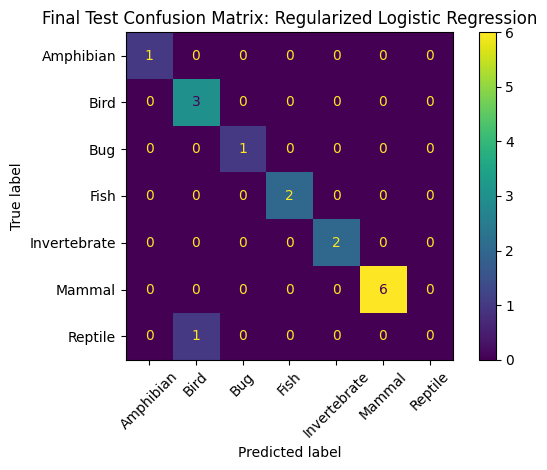

ConfusionMatrixDisplay.from_estimator(
final_model,
X_test,
y_test,
xticks_rotation=45
)
plt.title(f"Final Test Confusion Matrix: {best_model_name}")
plt.tight_layout()
plt.show()
